TC-5 Professional Long-Range Silent Disco Transmitter – 500m Range
TC-5 Professional Long-Range Silent Disco Transmitter – 500m Range
Couldn't load pickup availability

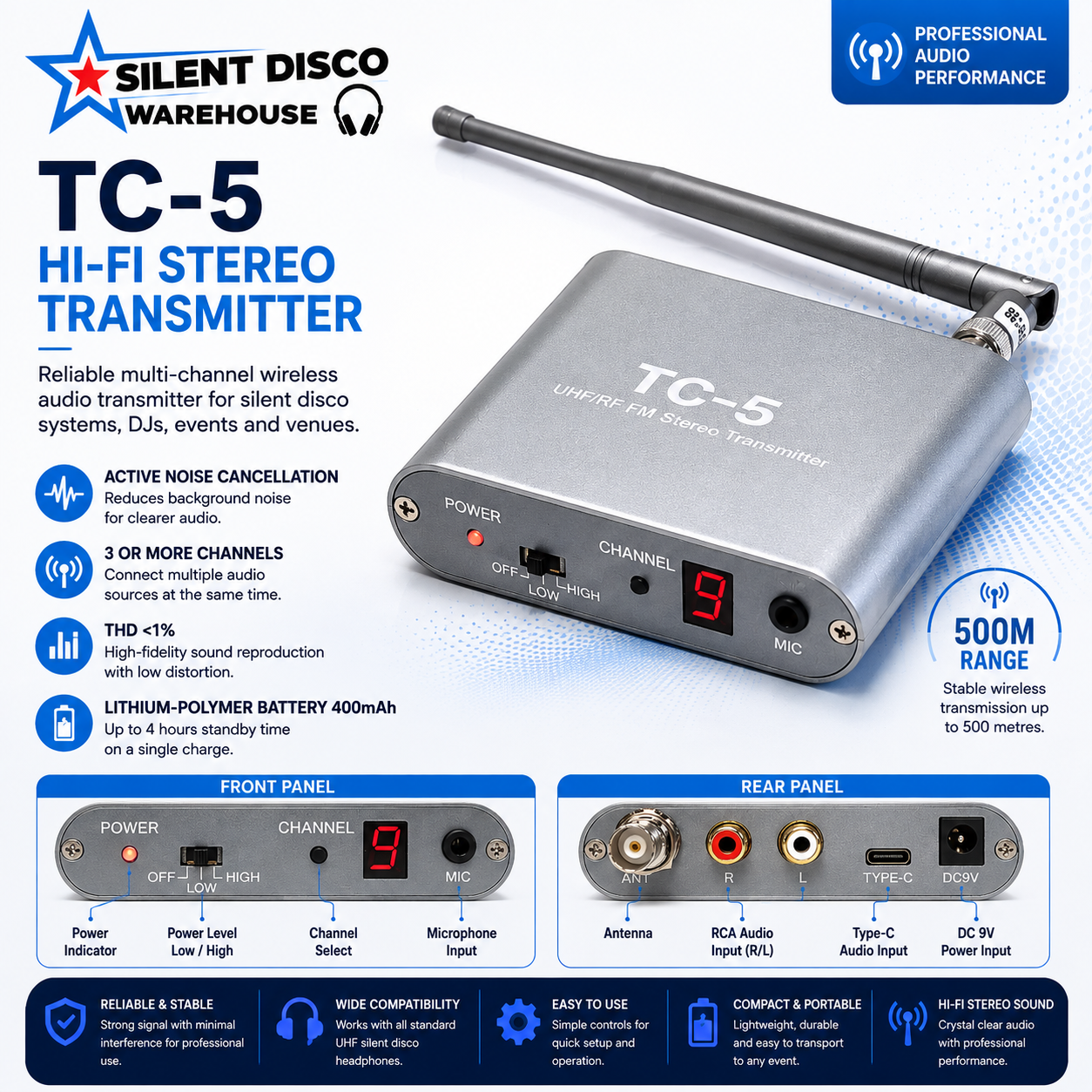

The TC-5 Professional Silent Disco Transmitter is a powerful, long-range transmitter designed for commercial silent disco systems, events, venues, schools, universities and professional operators.
With selectable Low and High power modes, the TC-5 can provide transmission distances of approximately 300 metres in Low mode and up to 500 metres in High mode in suitable open conditions.
Multiple TC-5 transmitters can be used on different channels, allowing several audio sources to operate simultaneously. The transmitter features stereo RCA audio inputs, a microphone input, an internal rechargeable battery and an external 5dBi antenna for reliable wireless transmission.
Key Features
- Up to 500m transmission range in open environments
- Low & High power modes
- Approx. 300m range in Low mode
- Approx. 500m range in High mode
- Multiple channel operation
- Compatible with suitable multi-channel silent disco headphones
- Stereo RCA audio input
- 3.5mm microphone input
- Built-in 1000mAh rechargeable battery
- External 5dBi antenna
- Clear digital channel display
- Automatic level control
- Automatic power-off after 10 minutes without an audio signal
- Compact, commercial-grade design
- Can be used continuously from the supplied 9V power adapter
- High-power mode available when connected to the 9V power supply
Technical Specification
| Specification | TC-5 |
|---|---|
| Modulation | FM |
| Frequency Options | 433MHz / 863MHz / 915MHz |
| Transmission Power – Low | 10dBm |
| Transmission Power – High | 29dBm |
| Approx. Low Power Range | Up to 300m |
| Approx. High Power Range | Up to 500m |
| Antenna | External 5dBi |
| Power Supply | 9V DC |
| Internal Battery | Grade-A 1000mAh rechargeable battery |
| Charging Time | Approx. 2–3 hours |
| Current – Low | 90mA (typ.) |
| Current – High | 300mA (typ.) |
| Power-On Sensitivity | 60mVp-p (typ.) |
| Automatic Level Control | Approx. 700mVp-p |
| Audio Input | Stereo RCA Left & Right |
| Microphone Input | 3.5mm / 1/8" |
| Antenna Connection | BNC |
| Dimensions | 107 × 90 × 26mm |
| Auto Power-Off | After approx. 10 minutes without signal |
Low & High Power Modes
LOW MODE
Designed for normal operation and provides a transmission distance of approximately 300 metres in suitable open conditions. When operating from the internal battery, the TC-5 transmits in Low mode.
HIGH MODE
Provides increased transmission power with a range of approximately 500 metres in suitable open conditions. High mode is available when the transmitter is connected to the supplied 9V DC power adapter.
Connections
RCA L/R Input
Connect a mixer, DJ controller or other compatible audio source using the left and right RCA inputs.
MIC Input
A 3.5mm wired microphone can be connected and mixed with the transmitted audio.
BNC Antenna Connection
Connects the supplied external antenna.
DC 9V
Powers the transmitter and charges the internal battery. The transmitter can operate in High power mode while connected to the 9V supply.
USB Type-C
The Type-C connection is a service port only. It should not be used to charge or power the transmitter.
What's Included?
Each TC-5 transmitter includes:
- 1 × TC-5 Silent Disco Transmitter
- 1 × 5dBi Antenna
- 1 × 9V Power Adapter
- 1 × 3.5mm male-to-male audio cable
- 1 × RCA to 3.5mm audio cable
Ideal For
The TC-5 is particularly suitable for professional and commercial silent disco installations, including event companies, schools and universities, festivals, venues, DJs, fitness events, corporate events and organisations running their own silent disco equipment.
